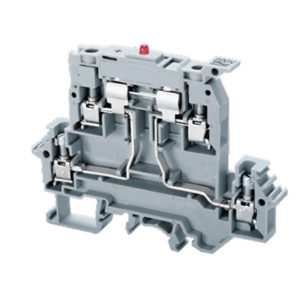

DDFL4UELR- Screw Terminal by Connectwell

DDFL4UELR

These Terminal Block are modified version of the ddfl4u where two equi-potential connection points are available on both sides of the Terminal

CONNECTION DATA
Conductor Cross Section Stranded min.	0.2 mm²
Conductor Cross Section Stranded max.	4 mm²
Conductor Cross Section AWG/Kcmil min	22 AWG
Conductor Cross Section AWG/Kcmil max	10 AWG
Conductor Cross Section Stranded with Ferrule/Lug min	0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max	4 mm²
2 Conductors with same Cross Section Stranded min	0.2 mm²
2 Conductor with same Cross Section Stranded max	2.5 mm²
Conductor Cross Section Solid min	0.2 mm²
Conductor Cross Section Solid max	6 mm²
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min	0.2 mm²
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max	2.5 mm²
Stripping Length	9.5 mm
Internal Cylindrical Guage	A4

ACCESSORIES

IMAGES

CAT. NO.

DESCRIPTION

STD. PACK

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails

End Clamp in Polyamide 66 suitable for Din 32 / Din 35 / Din 35-15 Rails

End Clamp in Polyamide suitable for Din 35 / Din 35-15 Rails

End Plate in Grey colour suitable for DDFL4U / DDFL4U(E) / DDFL4ULR / DDFL4U(E)LR Terminal Block

CA729/2	Pre assembled Shorting Link for 2 way shorting	100
CA729/3	Pre assembled Shorting Link for 3 way shorting	50
CA729/4	Pre assembled Shorting Link for 4 way shorting	50
CA729/10	Pre assembled Shorting Link for 10 way shorting	10

CA749/2	Insulated Pre assembled Shorting Link for 2 way shorting	100
CA749/3	Insulated Pre assembled Shorting Link for 3 way shorting	50
CA749/4	Insulated Pre assembled Shorting Link for 4 way shorting	50
CA749/10	Insulated Pre assembled Shorting Link for 10 way shorting	10
