Connecwell ผลิตเทอร์มินัลบล็อคภายใต้มาตราฐานการทำงาน ISO 9001: 2015 นอกจากเทอร์มินัล ยังมีอุปกรณ์หลากหลาย เช่น Interface Modules, Professional Tools และ Switching Power Supplies ตัวผลิตภันฑ์ได้รัลการรับรองเช่น UL, CSA, VDE, ATEX และ CE ในการตรวจสอบระดับคุณภาพต่างๆ ภายใต้ประสบการณ์กว่า 40 ปี โดยที่ Connectwell ผลิตโดยนึกถึงคุณภาพของผลิตภันฑ์เป็นหลักอย่างต่อเนื่อง
Terminal Block - Connectwell

Screw Terminal
Standard Feed Through Terminal Blocks เป็นเทอร์มินอล พื้นฐานใช้ไขควง ในการหมุนให้แผ่นเหล็กจับยึดสายไฟฟ้า สามารถใช้ได้กับสายแข็งและสายอ่อน.

Stud Terminal
การล็อคสายแบบสตัท ช่วยให้สายเกิดการหลุดได้ยาก ใช้กับการเข้าสายหางปลาแบบแหวน หรือแบบส้อม ในการจับยึดสายไฟ

Spring Terminal
ในส่วนของเทอร์มินอล ที่ใช้การจับยึดแบบสปริงนั้น จะทำให้ประหยัดเวลาในการเข้าสาย เพราะสามารถใช้ไขควงปากแบน แทงที่เทอร์มินอลเพื่อให้ ช่องสปริงที่สำหรับจับยึดสายเปิด เมือดึงไขควงออกการคืนตัวของสปริงจะทำให้สายที่ใส่เข้าไปเกิดการล็อคแน่น ลดปัญหาการคลายการจำยึดสาย

PUSH-IN Terminal
การเข้าหรือปลดสายสามารถทำได้โดยง่ายเพียงแค่กดปุ่มที่อยู่ด้านบนของเทอร์มินอล ลดเวลาในเข้าสายไฟเข้าสายได้แม้ไม่มีไขควง สะดวกสบาย
Characteristics of terminal block.

ผลิตจากโพลีอะไมด์66
สามารถเลือกใช้งานได้ 6 สี
UL94 V2 สามารถดับไฟไดด้วยตัวเองในเวลา 30 วินาที
อุณหภูมิการทำงานอยู่ที่ -40 ถึง 150 องศาเซลเซียส
สามารถใช้งานบนราง DIN15,32,35 ได้
สามารถใส่อุปกรณ์เสริม Short Linking เพื่อเชื่อมเทอร์มินัลได้


Standard Feed Through Terminal Blocks of Connectwell

CTS2.5UN
2.5 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 24A

CTS4UN
4 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 32A

CTS6U
6 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 41A

CTS10U
10 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 57A

CTS16U
16 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 76A

CTS25UN
25 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 101A

CTS35UN
35 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 125A

CTS50/70N
70 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 192A

CTS95/120N
120 sq.mm Standard Feed Through Terminal Blocks, . Rated Current 269A
Double Level Terminal Blocks

ODL2.5 / ODL2.5A
2.5 sq.mm Offset Double Level Terminal Blocks.

ODL2.5(I.S) / ODL2.5A(l.S)
2.5 sq.mm 2 Level Offset internally shorted stackable type .

CDL4UN
0.2-4 sq.mm Double Level Terminal Blocks.

CDL4UN(I.S)
0.2-4 sq.mm Double Level Internally Shorted Terminal Blocks.

ODL4U
0.2-4 sq.mm Double Level Internally Shorted Terminal Blocks.
Triple Level Terminal Blocks
Fuse Terminal Blocks

CTL2.5U
2.5 sq.mm Three Level Feed through Terminal Blocks

CTL2.5U(I.S)
2.5 sq.mm Three Level internally shorted Terminal Blocks

CTL2.5UHL
2.5 sq.mm Three Level Terminal Blocks with LED suitable for sensor & actuator application

CF4UL
4 sq.mm Single Level Fuse Terminal Blocks with LED indication.

DDFL4UELR
4 sq.mm Double Level Fuse Terminal Blocks with two equi-potential points on each side and offline LED indication.
Ground / Earth Terminal Blocks

CGT4N
0.2 - 4 sq.mm Ground / Earth Terminal Blocks and colour coded as per industries standard.

CGT6N
0.2 - 6 sq.mm Ground / Earth Terminal Blocks and colour coded as per industries standard.

CGT10N
0.2 - 10 sq.mm Ground / Earth Terminal Blocks and colour coded as per industries standard.

CGT35U
2.5 - 35 sq.mm Ground / Earth Terminal Blocks and colour coded as per industries standard.35
Stud Feed Through Terminal Blocks by Connectwell

STH3
6 sq. mm Stud Type Terminal Block Connectwell - with captive nuts.

STH4
6 sq. mm Stud Type Terminal Block Connectwell - with captive nuts.

STH6
35 sq. mm Stud Type Terminal Block Connectwell- with captive nuts.

STH4DT/STH4DTSH
6 sq. mm M4 Stud Disconnect & Test shorted Terminal Block - with captive nuts.

CBDT4U
6 sq. mm Slide Link Disconnect and Test New Terminal Block

CSTSN4U
1.5 – 10 sq. mm Nut driver operated M4 sized Stud Type Terminal Blocks.

PTB70/95
1.5 - 95 sq. mm Nut driver operated M8 sized Stud Type Power Terminal Blocks.

PTB70/95SH
1.5 - 95 sq. mm Nut driver operated M8 sized Stud Type Power Terminal Blocks.

CBB35/50
1.5 - 50 sq. mm Nut driver operated M6 sized Stud Type Power Terminal Blocks.

CBB70
6 - 70 sq. mm Nut driver operated M8 sized Stud Type Power Terminal Blocks.

CBB95
16 - 95 sq. mm Nut driver operated M10 sized Stud Type Power Terminal Blocks.

CX Series Spring Clamp Terminal Block of Connectwell

CX2.5
2.5 sq.mm Spring Clamp Feed Through compact Terminal Blocks 24A

CX4
0.2-4 sq.mm Spring Clamp Feed Through compact Terminal Blocks

CX6
6 sq.mm Spring Clamp Feed Through compact Terminal Blocks. 41A

CX10
10 sq.mm Spring Clamp Feed Through compact Terminal Block . Rated Current 57A

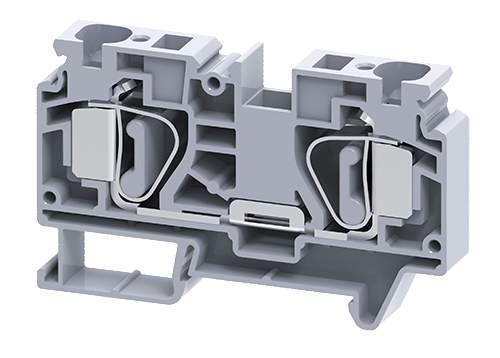

CSC16T
16 sq.mm Spring Clamp Feed Through Terminal Blocks. Rated Current 76A
Mutiples Terminal

CX2.5/3
2.5 sq.mm Spring Clamp Feed Through compact Terminal Blocks 24A
with 3 connected channels

CX2.5/4
2.5 sq.mm Spring Clamp Feed Through compact Terminal Blocks 24A
with 4 connected channels

CX4/3
4 sq.mm Spring Clamp Feed Through compact Terminal Blocks 32A
with 3 connected channels

CX4/4
4 sq.mm Spring Clamp Feed Through compact Terminal Blocks 32A
with 4 connected channels
Ground / Earth Terminal Blocks
